Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light

China Zhejiang Huiyou Auto Parts Co., Ltd. certification
China Zhejiang Huiyou Auto Parts Co., Ltd. certification
Happy purchase experience for 12v 40 amp relays , good quality , good price and good service .will have next cooperation soon

—— Max Tavarez

We installed the auto relay and flasher on cars, looks so cool, hope to get more Interesting items for our theme events in the next year. Keep in touch!

—— Omar Abualhayja

With good quality and cheap price on relay flash product, will have long time cooperation with huiyou company.

—— Ahmed Lama

Product is good and deliver so fast, will keep the cooperation for long time. Hope Huiyou company business getting better and better. And the relay product quality is very good, love it.

—— Amir Abbas Kiani

I'm Online Chat Now

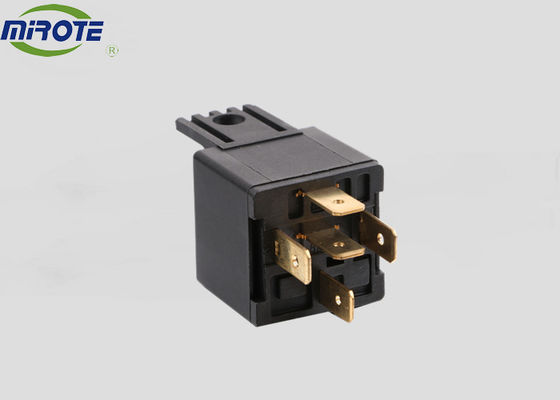

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light
Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light

Large Image :  Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light

Product Details:
Place of Origin: CHINA
Brand Name: MIROTE
Model Number: HY422-C
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: 10pcs/box 500pcs/ctn
Delivery Time: 15-30days
Payment Terms: L/C, T/T, D/P
Supply Ability: 200000pcs/week
Detailed Product Description
Cover: Transparent Wire: Copper
Pins: 5 Copper Pins Contact: Copper
Waterproof: Sealed Led Light: No Led Light
High Light:

car electrical relay

,

heavy duty automotive relay

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light



EXPORT LOGO & DOMESTIC LOGO

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 0 Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 1



When you opened this website which means we are very lucky get your attention , your visiting is very important for us . We are the most abundant manufacturer of relay and flasher products in China , competitive price .We sincerely hope to cooperate with you, an important customer , to create higher value and future together .



1.How to choose a good relay ,

its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.



Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 2Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 3Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 4

Zhejiang Huiyou is a factory in China for more than ten years. Its products are sold to more than 30 countries and regions all over the world. It has a strong technical reserve, excellent automation production equipment and more than 100,000 products are shipped every day. Strict quality management team, sincerely looking forward to partners from around the world.

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 5Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 6Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 7Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 8



3.Brief Introduction



40A switching current

Integrated components (e.g. resistor, diode)

Customized marking/color

Suitable for control kinds of automobile circuits

Excellent shake resistance performance

Outlet terminal of swift connection type

With couple socket

Outline size (mm): 28 X 28 X 25(+16)



Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 9Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 10Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 11



4.Parameter



Auto Relay Contact Data
Contact Form 1A SPST(NO); 1B SPST(NC); 1C SPDT(B-M); 1U SPST(NODM)
Contact Material Silver Alloy
Contact Resistance 50mΩ (1A 6VDC)
Contact Rating 1A 1B 1C 1U
40A/14VDC 30A/14VDC NO:40A/14VDC; NC:30A/14VDC 2 X20A/14VDC
Max. Operating Voltage 250VAC/30VDC
Max. Operating Power 7500VA/900W
Electrical Endurance 10^5 times
Mechanical Endurance 10^7 times



Auto Relay Operation Specification
Insulation Resistance 100mΩ 500VDC
Dielectric Strength BCC 50Hz 500V
BOC 50Hz 500V
Operate/Release Time 10ms/5ms
Terminal Type Outlet terminal
Ambient temperature -40~85°C
Weight 31g, 35g(with iron bracket)
Model Reference TYCO; VF4; HELLA;MATSUSHITA CB; SIMENS; BOSCH



5.Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 12

6.Twenty exhibitions worldwide each year

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 13

7.More than 100 products

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 14

8.Main export market

Mid east , North America , Southeast Asia , South America , Africa ...



9. Package

Nowadays, package is important, we have various packing methods for your selection.

Car SPDT Mini 40 Amp 5 Pin Relay 24 Volt With Brackrest No Led Light 15



You can also customize your package, as long as the quantity is considerable.



10.Guarantee

To make you rest assured about the after-sale,we would like to provide two-year quality guarantee.10000times life time .



11, Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Shipping way : By air , we send to your forwarder warehouse .

By express , door to door deliverly .

By ship , send to your agent or forwarder warehouse .
