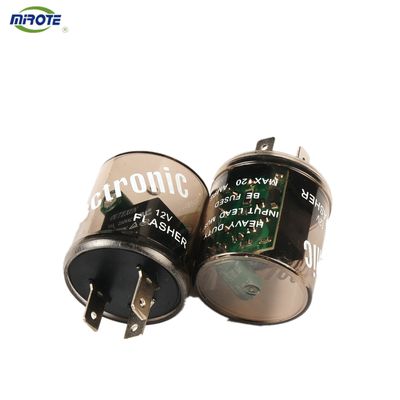

12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp

12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp
12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp 12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp 12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp 12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp

Large Image :  12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp

Product Details:
Brand Name: Mitote
Model Number: HY163-S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 1pcs in a paper box, 500pcs in a master carton
Delivery Time: 25-45 work days
Payment Terms: T/T
Supply Ability: 1,500,000PCS
Detailed Product Description
Kinds: Electromagnetic Relay Model: HY163-S
Max Contact Current: 40A Voiltage: 12V
COIL Power: 1.8W
High Light:

led headlight relay

,

universal headlight relay

12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp

Description:

Relay is a kind of electrical control device. When the change of input (excitation) reaches the required requirements, it makes the controlled quantity change step by step in the electrical output circuit. It has the interactive relationship between the control system (also known as the input loop) and the controlled system (also known as the output loop). Usually used in automatic control circuit, it is actually a kind of "automatic switch" which uses small current to control the operation of large current. Therefore, it plays the role of automatic regulation, safety protection, conversion circuit and so on.

Parameter



Specifications
Case Material Plastic
Main Color Clear
Voltage DC 12V
Power 150W



Application
Air Conditioning, Fridge, Washing Machine, etc Household Appliance



Insulation Resistance 1,000 MegaΩMin. At 500VDC
Max. On/Off Switching: Electrical 30 Ops per minute
Temperature Range –40~85℃
Humidity Range 45~85% RH
Coil Temperature Rise 35℃ Maximum
Endurance 10 to 55 Hz dual
amplitude width 1.5mm Error Operation 10 to 55 Hz dual amplitude width 1.5mm
Endurance 981m/s2
Min Error Operation 98.1m/s2 Min
Weight about 35g





12 Volt 3 Pin Heavy Duty Electronic Flasher Be fused 20amp 0
2.Brief Introduction
This product is mainly used in automobile air conditioning field, the shell shiny metal , and can be laser engraved or oil printing. Recent years,with the expansion of sales, application field has been extended to the lights, wiper and other fields


Main Feature

1.Small size (28.2x23x29.4in mm) produces a switching capacity up to 30A for high density P.C.Board mounting technique.

2.The contact form construction is 1A

3.The Surge Resistance of BAL11 series is 10,000V

4.Sealing Construction (Free from dust and solder flux): BAL11 -S: Plastic duct cover..

5.The selection of plastic insulation material is designed for high temperature and provides better chemical solution performance.

6.RoHS Compliant.


More than 100 products
