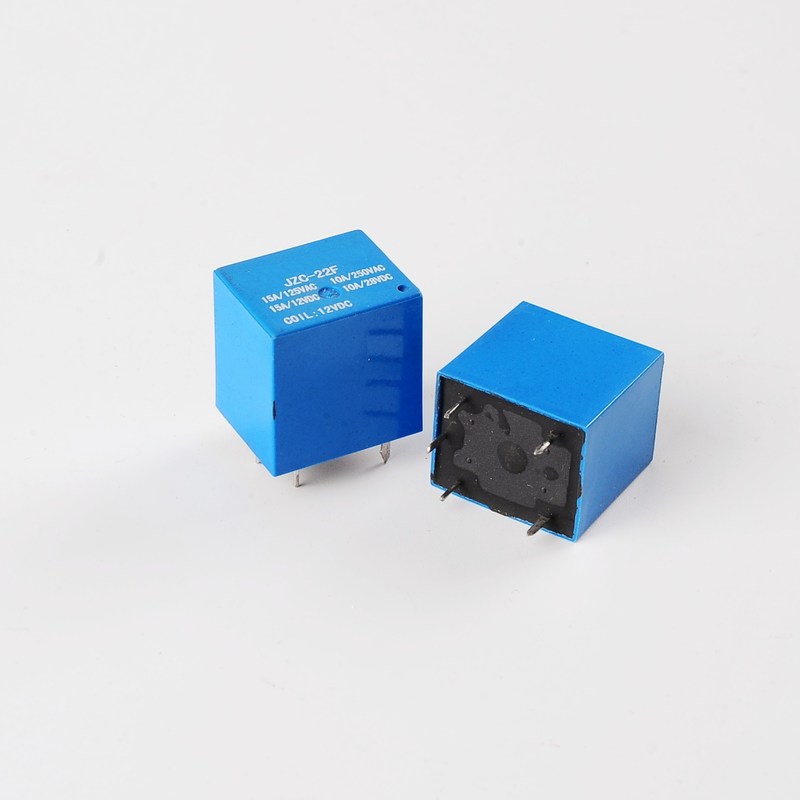

Electromagnetic JQX-22F 10amp Pcb Relay 12v

small.img.alt small.img.alt small.img.alt

Large Image :  Electromagnetic JQX-22F 10amp Pcb Relay 12v

Product Details:
Place of Origin: Ningbo, Zhejiang
Brand Name: Mirote
Model Number: JQX-22F
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: 50pc/box, 1000pcs/CTN
Delivery Time: 20-35 WORK DAYS
Payment Terms: T/T, , L/C, D/P
Supply Ability: 5000000pcs per month
Detailed Product Description
Theory: PCB Relay Rated Voltage: 12VDC
Contact Resistance: < 100mΩ (1A 6VDC) Size: 20.3*16.6*20.4
Contact Rated: 10A/240VAC 28VDC Contact Form: 1A 1B 1C
Contact Material: Silver Alloy Action Type: SPDT
High Light:

10amp pcb relay 12v


12v 10amp pcb mount relay


electromagnetic pcb relay 12v

1. Electromagnetic PCB relay JQX-22F 10amp 12V relays China Manufacturer


2. Parameter


Product Specification

Contact Contact Form 1H 1D 1Z
Contact Load

A:10A/240VAC 28VDC Z:20A/240VAC 28VDC

Mechanical/Electrical Life > 105 times / 107 times
Contact Resistance <100mΩ (1A 6VDC)
Contact Material AgSno2
Performance Insulation Resistance ≥1000MΩ(500VDC)
Dielectric Strength Between same pole Contacts > 1500VAC/1min
Between Coil and Contact> 1500VAC/1min
Pull-in/Release Time < 15ms/ 10ms
Coil Rated Coil Power DC 2.0W, AC2.5VA
Coil Voltage DC DC 3V-48V
Coil Power DC 0.36W
AC 1.2VA


Contact Ratings

Contact Arrangement 1Form 1 (SPST-NO) 1 Form C(SPDT)
Max. Switching Power 7200VA/ 840W 4800VA/560W
Max. Switching Voltage 240VAC/28VDC 240VAC/28VDC
Max. Switching Current 30A 20A
Contact Resistance 50m Ω 50m Ω
Initial Contact Resistance 100m Ω 100m Ω​
Rating Load 10A/240VAC   28VDC 20A/240VAC 28VDC
Contact Material Ag-CdO


Environmental Condition

Temperature Range -45~+85℃
Relative Humidity Up to 98% at + 40℃
Atmospheric Pressure 86~ 106Kpa
Vibration 10~55Hz Dual Amplitude 1.65mm
Release Time < 10ms
Pull-up Time < 15ms

Electromagnetic JQX-22F 10amp Pcb Relay 12v 0


Electromagnetic JQX-22F 10amp Pcb Relay 12v 1

3. Guarantee


To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.


4. Sample Policy


To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.


5. Terms of payment

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


6. Delivery time

Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
