Product Details:
Payment & Shipping Terms:
|

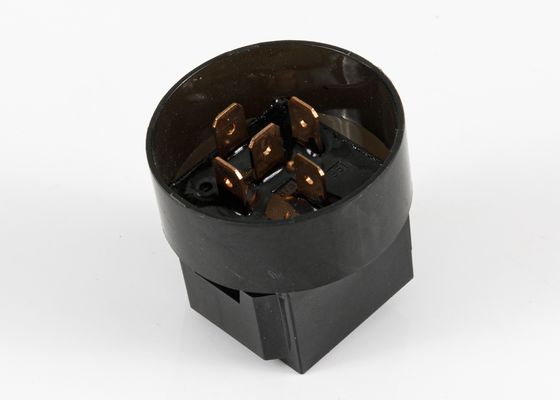

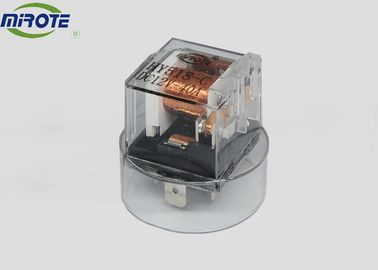

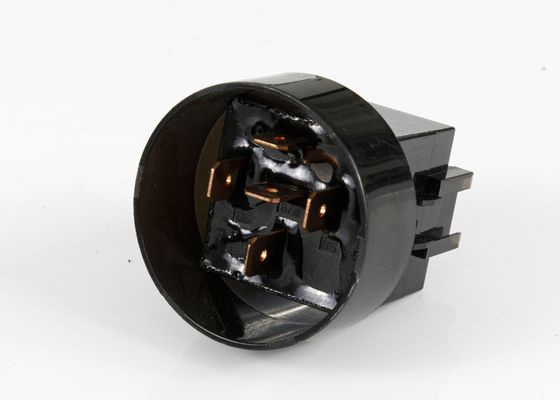

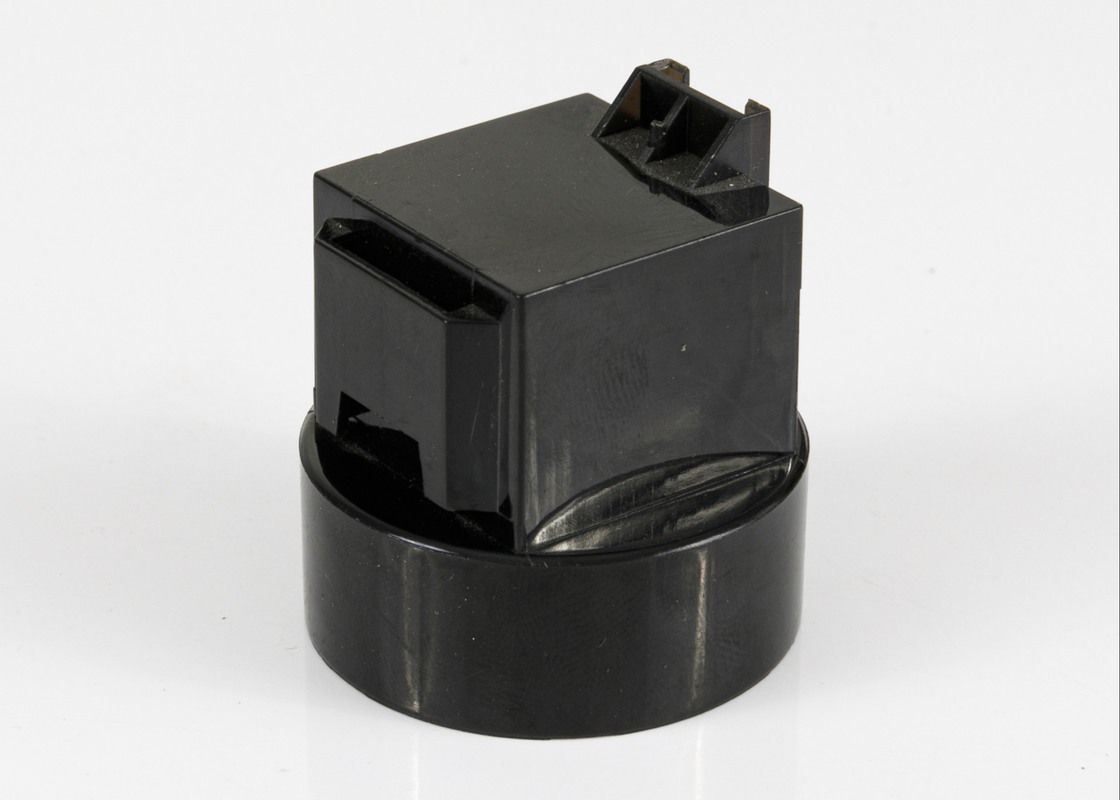

| Item: | Car Relay | Rated Load: | 40/30A 14VDC |
|---|---|---|---|
| Max Switching Current: | 40A | Max Switching Voltage: | 30VDC |
| Max Switching Power: | 560W | Accessory Type: | Without LED |
| Pack Form: | Sealed | Contact Form: | 1A 1B 1C 2A |
| High Light: | car electrical relay,car power relay |
||
| Contact Material | Silver Alloy | |
| Contact Resistance | 100MΩ Max | |
| Operate Time | 10msec Max | |
| Release Time | 5msec Max | |
| Insulation Resistance | 100MΩ Min (DC500V) | |
| Dielectric Strength | Between Coil & Contacts | AC500V, 50/60Hz 1min |
| Between Open Contacts | AC500V, 50/60Hz 1min | |
| Humidity | Functional | 10~55Hz, double strike 1.5mm |
| Destructive | 10~55Hz, double strike 1.5mm | |
| Shock Resistance | Functional | 10G min |
| Destructive | 100G min | |
| Life | Electrical Life | 10000000 times |
| Mechanical Life | 100000 times | |
| Temperature Range | -40 ℃~ 105 ℃ | |
| Weight | about 41g | |
Coil Data (at 20℃)
| Nominal Voltage VDC | Rated Current (mA) | Coil Resistance | Operate Voltage | Release Voltage | Max Permissible Voltage | Coil Power |
| 12 | 150 | 80Ω | Rated voltage of 70% | Rated voltage of 10% | Rated voltage of 150% | 1.8W |
| 24 | 75 | 320Ω |
3. Diagram
4. Application
ABS Control Syetem blower
Electric steering system power management
Heated front window fuel pump
Wiper control system valve
Light main switch/power relay
Car alarm Engine control system
5. Package
Customer can do their own customized box and package.
6. Guarantee
For all the products we supply, we offer 1 year guarantee. And send the replacement freely.
