Product Details:
Payment & Shipping Terms:
|
| Cover: | Yellow Plastic Cover | Wire: | Copper |
|---|---|---|---|
| Contact: | Copper / Silver Contact | Sealed: | Waterproof |

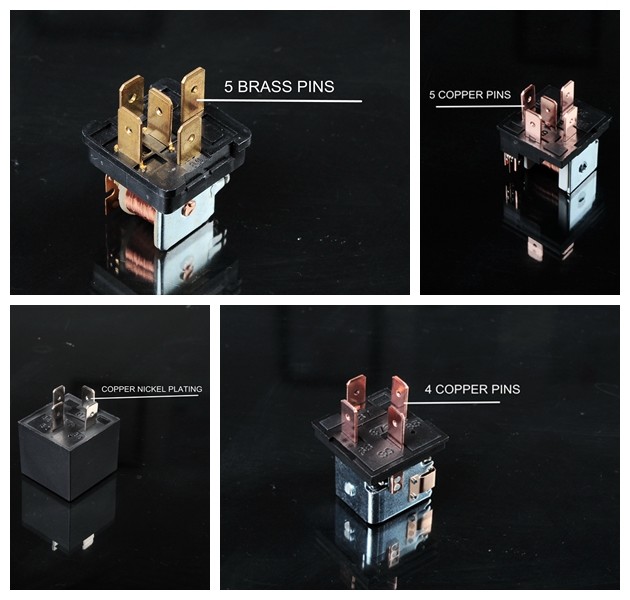

| Terminal: | 6 Copper Pins | Current: | 16A |
| Voltage: | 12V | ||
| High Light: | car electrical relay,universal horn relay |
||

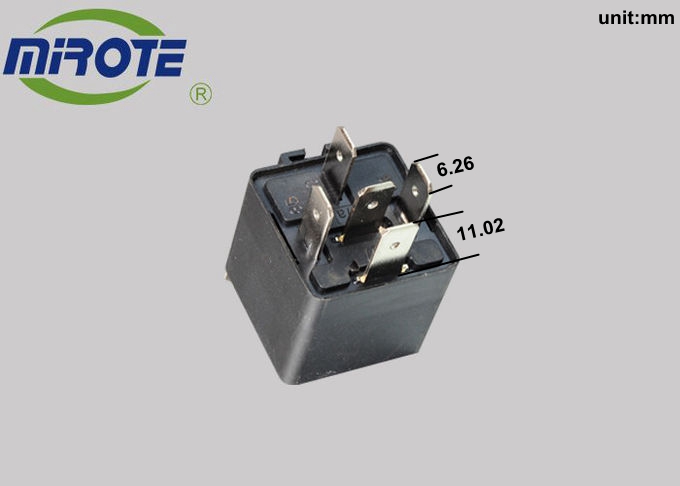

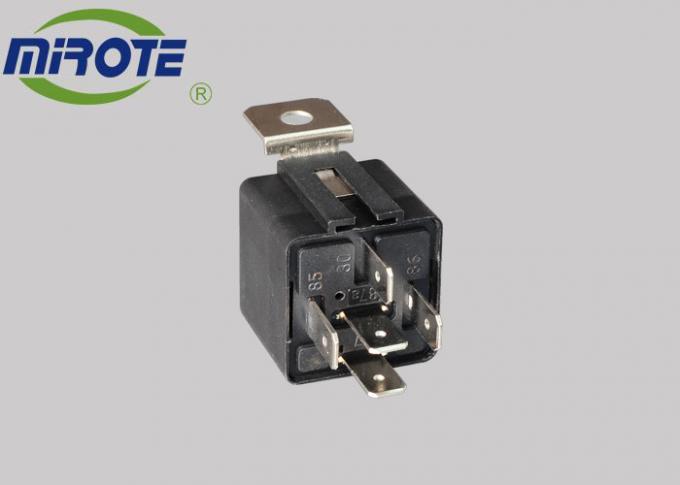

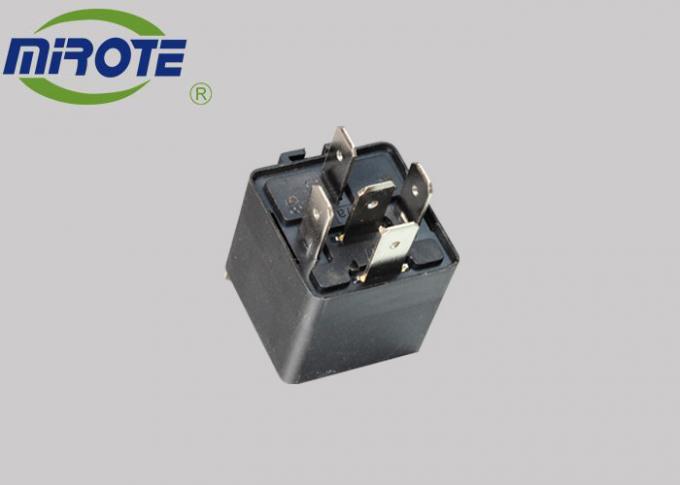

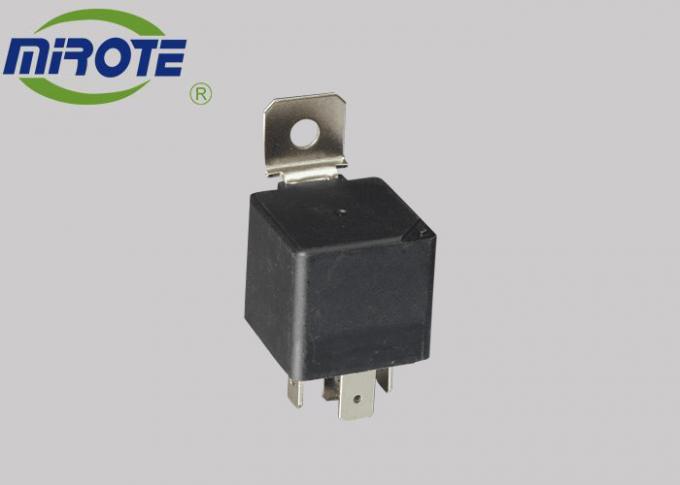

Factory direct car air conditioning relay 12V 40A relay universal electromagnetic relay 5 pin spdt relay
EXPORT LOGO & DOMESTIC LOGO
1.Description
6 pins, SPDT type, PCB mount. Can adjust automatically, protect and transform the electric circuit. Used widely in the remote control, communication, automatic control system, electronic equipments, etc.
2.Parameter

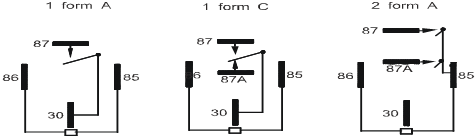

| Contact Form | 1H(1A),1Z(1C) |
| Contact Resistance | 100mΩ(1A 6VDC) |
| Contact Material | Silver Alloy |
| Contact Load | 1H:40A 14VDC 1Z:30A/14VDC |
| Max switch Current | 40A |
| Max switch Power | 560w |
| Max switch Voltage | 60VDC |
| Mechanical Life | 1×107 times |
| Electrical Life | 5×104 times |
| Performance Parameter | |
| lsulation Resistance | 100mΩ ,500VDC |
| Operate Time | Max:15 ms |
| Release Time | Max:10 ms |
| Coil Temperature | Max:60°C |
| Temperature Ran | ﹣40°C~﹢85°C |
| Shock | Double shock:1.5mm 10~55Hz |
| Humidity | 35%~85%RH |
3. Feature
High switching current at 16A in small size.
1 N/O contact with a Tungsten pre-make contact.
Dielectric Strength up to 5,000VAC.
1 pole 16 A, 1 NO contact(W pre-make contact + AgSnO2).
165 A / 20 ms inrush peak current.
4. Package
Nowadays, package is important, we have various packing methods for your selection.
1)100pc per paper box , 1000pcs in a master carton
You can also customize your package, as long as the quantity is considerable.
5. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .
6. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Zhejiang Hui You Auto Parts Co., Ltd., founded in 2005, is an integrated company of industry and trade. We are specialized in the R&D of automotive electronic accessories such as auto relays, auto flashers, auto wiper relays etc. Our products are sold all over the world and get most positive feedback and won trust of our customers.

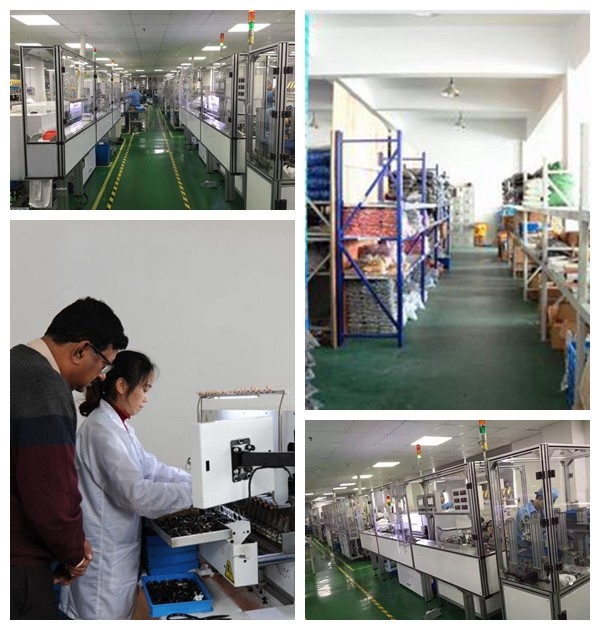

We adhere to the people-oriented management. As only by motivating the staff, can we realize the common development .We are constantly pursuing the superior quality of our products.Professional team, excellent automatic machine and testing equipment guarantee the excellent quality.
