4 Blades 20a 24 Volt Automotive Relay Black Plastic Cover For DongFeng Car 3735095-C0100

China Zhejiang Huiyou Auto Parts Co., Ltd. certification
China Zhejiang Huiyou Auto Parts Co., Ltd. certification
Happy purchase experience for 12v 40 amp relays , good quality , good price and good service .will have next cooperation soon

—— Max Tavarez

We installed the auto relay and flasher on cars, looks so cool, hope to get more Interesting items for our theme events in the next year. Keep in touch!

—— Omar Abualhayja

With good quality and cheap price on relay flash product, will have long time cooperation with huiyou company.

—— Ahmed Lama

Product is good and deliver so fast, will keep the cooperation for long time. Hope Huiyou company business getting better and better. And the relay product quality is very good, love it.

—— Amir Abbas Kiani

I'm Online Chat Now

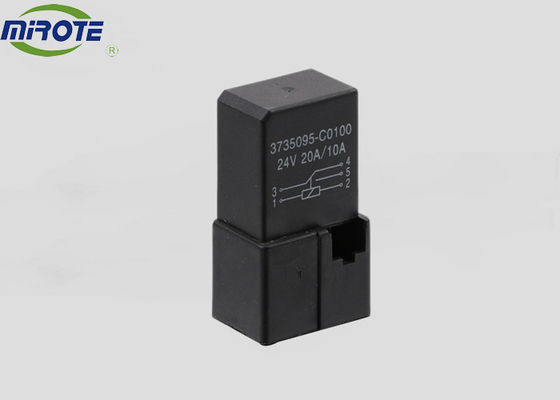

4 Blades 20a 24 Volt Automotive Relay Black Plastic Cover For DongFeng Car 3735095-C0100

4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100
4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100

Large Image :  4 Blades 20a 24 Volt Automotive Relay Black Plastic Cover For DongFeng Car 3735095-C0100

Product Details:
Place of Origin: CHINA
Brand Name: MIROTE
Model Number: HY116-K
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: 25pcs/box 500pcs/ctn
Delivery Time: 15-30days
Payment Terms: L/C, T/T, D/P
Supply Ability: 100000pcs/week
Detailed Product Description
Cover: Plastic Cover Wire: Copper
Pins Material: Copper / Iron Contact: Silver / Copper Contact
Waterproof: Sealed
High Light:

mini automotive relay

,

standard automotive relay

4 Blades 20a 24 Volt Automotive Relay Black Plastic Cover For DongFeng Car 3735095-C0100

EXPORT LOGO & DOMESTIC LOGO

4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 0     4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 1

When you opened this website which means we are very lucky get your attention , your visiting is very important for us . We are the most abundant manufacturer of relay and flasher products in China , competitive price .We sincerely hope to cooperate with you, an important customer , to create higher value and future together .

1.How to choose a good relay ,

its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.

4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 24 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 3

Zhejiang Huiyou is a factory in China for more than ten years. Its products are sold to more than 30 countries and regions all over the world. It has a strong technical reserve, excellent automation production equipment and more than 100,000 products are shipped every day. Strict quality management team, sincerely looking forward to partners from around the world.

4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 4

2.Brief Introduction

This product is mainly used in automobile air conditioning field, the shell shiny black, and can be laser engraved or oil printing. Recent years,with the expansion of sales, application field has been extended to the lights, wiper and other fields .

4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 5



3.Parameter



Contact Rating

Nominal Load(Resistive Load Cosφ=1) Contact Capacity

30A at 14VDC 15A at 28VDC

Max. Allowable Current 30A
Max. Allowable Voltage DC28V
Max. Allowable Power Force 420W
Contact Material Ag Alloy
Contact Form SPST





Performance (at Initial Value)

Contact Resistance ≤50mΩ at 6VDC/1A
Operate Time 10ms. Max
Release Time 5ms. Max
Dielectric Strength Between Coil & Contact 700VAC at 50/60 Hz for one minute
Surge Resistance 10,000V (between Coil&Contact 1.2x50 μs)



4. Application



Air Conditioning, Fridge, Washing Machine, etc Household Appliance

Insulation Resistance 1,000 MegaΩMin. At 500VDC
Max. On/Off Switching: Electrical 30 Ops per minute
Temperature Range –40~85℃
Humidity Range 45~85% RH
Coil Temperature Rise 35℃ Maximum
Endurance 10 to 55 Hz dual
amplitude width 1.5mm Error Operation 10 to 55 Hz dual amplitude width 1.5mm
Endurance 981m/s2
Min Error Operation 98.1m/s2 Min
Weight about 35g

5.Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed

4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 6

6.Twenty exhibitions worldwide each year

4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 7

7.More than 100 products

4 Blades 20a 24 Volt Automotive Relay  Black Plastic Cover For DongFeng Car 3735095-C0100 8
8.Advantage

We have realized fully automated production so that short production time available. Products are with stable quality, can be waterproof and open frame type. High-quality silver contact points make the contact resistance reached the international standard.



9. Package

Nowadays, package is important, we have various packing methods for your selection.

1)25pc per paper box , 500pcs in a master carton

2) 1pc per small box , 500pcs in a master carton

You can also customize your package, as long as the quantity is considerable.



10.Guarantee

To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .



11, Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
