Product Details:
Payment & Shipping Terms:
|
| Cover: | Black | Wire: | Copper |
|---|---|---|---|
| Pins: | 4 Copper Pins | Contact: | Copper |
| Waterproof: | Sealed | Led Light: | No Led Light |
| High Light: | 113.3747-01,4 Terminals Car Fuse Relay |
||

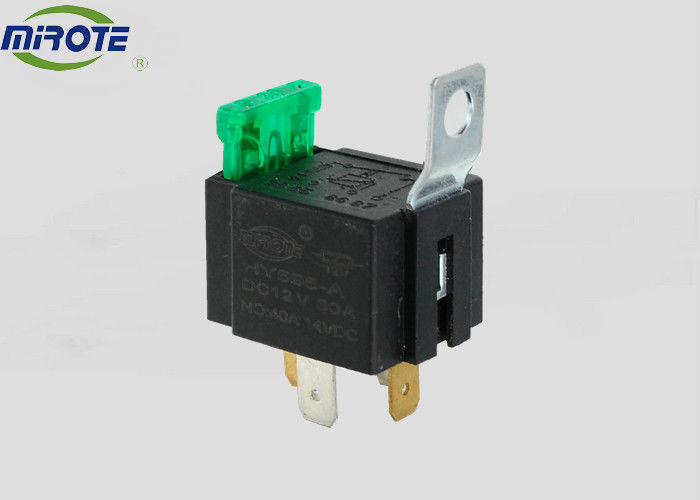

Car Fuse Relay With 4 Terminals 113.3747-01
Standard High Switch Capacity Automotive Horn Relays , Car Fuse Relay With 4 Terminals 113.3747-01
EXPORT LOGO & DOMESTIC LOGO
1. Product Detail
2. Brief Introduction
A mounting tab and standard 4 pin layout that accepts female spade terminals, Small size and light weight
Separated metal bracket to mount the relay, Heavy contact load(30A), Contact arrangement Form A
Suitable for automobile and lamp accessories application
Insert Mounting with metal frame, many installs require connecting direct to the vehicle battery using a relay
3. Parameter
| Contact arrangement | 1(A) | Contact Rating(Resistive) | 15, 30A/ 14VDC/28VDC |
| Max. Switching power | 420W | Max. switching voltage | 75VDC |
| Min. Contact Load | 30A | Electrical life | 100,000 ops |
| Mechanical life | 300 ops/min | Initial isolation resistance | 500M ohm (500VDC) |
| Contact Resistive or Voltage drop | < 50M ohm | Operate time | Max: 7ms |
| Release time | Max: 5ms | Ambient temperature | -40°C ~ +125°C |
| Vibration resistance | 10Hz~40HZ 1.27mm | Storage temperature | -40°C ~ + 85°C |
| Shock resistance | 147m/ss 11ms | Unit weight | 32g |
4. Excellent production equipment
5. Product packaging
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
