Product Details:
Payment & Shipping Terms:
|
| Kind: | Relay | Voltage: | 12V/24V/48V |
|---|---|---|---|
| Dimension: | 28.0 X23.0X29.5 | OE: | MB141967, MB183865, MB141969 |
| Pins: | 4 | Form: | 1A |
| Weight: | 30g | ||
| High Light: | mb141967,mb183865,land rover 12v 30a relay |
||

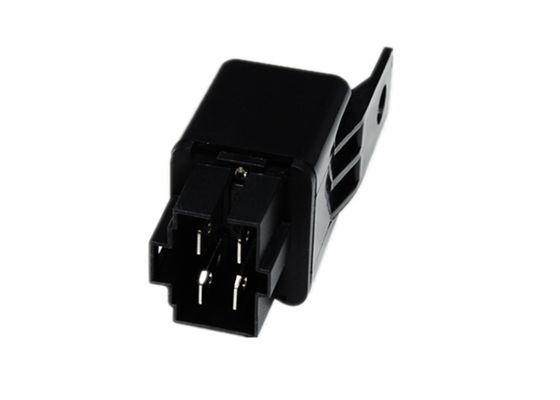

MB141967, MB183865, MB141969, LAND ROVER Mitsubishi RELAY 12V 30A
1. Description
Relay Features:
30A switching capability
1 form A contact form
Outline dimensions: 28.0 X23.0X29.5
| Contact Form | 1A |
| Contact Material | AgSno2 |
| Max. Operating Current | 30A |
| Max. Operating Voltage | 27VDC |
| Insulation Resistance | 100MΩ |
| Rated Load(Resistive load) | 1A:30A 13.5VDC 15A 27VDC |
| Dielectric Strength(Coil and Contact) | 500VAC |
| Ambient Temperature | -40°C~+85°C |
| Operate/Release Time | 10ms/10ms |
| Mechanical Life | 1 X106 |
| Electrical Life(min) | 1 X105 |
| Terminal Type | Terminal |
2.Details
3.Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
4.Sample Policy
To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.
5.Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
6. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
