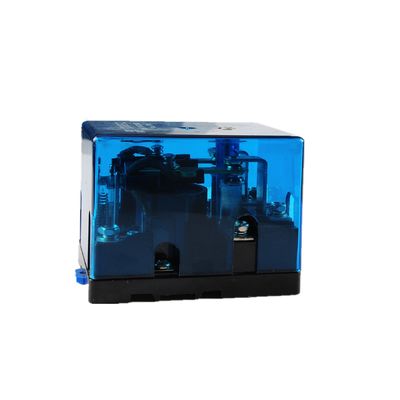

JQX-62F 2Z 100A 250VAC 30VDC Coil Power Vehicle Relay

1. JQX-62F 1Z 100A 250VAC 30VDC Coil Power Relay

2. Product feature:

High Power Relay Coil is an electrically operated switch. High Power Relay Coil consists of the set of input terminals for a single or multiple control signals, and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as making contacts, break contacts or combinations thereof. Relays are used where it is necessary to control a circuit by an independent low-power signal, or where several circuits must be controlled by one signal. Relays were first used in long-distance telegraph circuits as signal repeaters: they refresh the signal coming in from one circuit by transmitting it on another circuit. Relays were used extensively in telephone exchanges and early computers to perform logical operations.

1. Shock Resistance Strong, seismic resistance, Long Working Life

2. Can supply 1 set (100A) or 2 sets (80A)of contact conversion ()

3. Load, switch Power: 80A

4. Bolt type, Rail mounting

3. Contact Form Description

Changeover Type (Z):

In the middle there is a moving contact, when the coil is not energized, the moving contacts will be disconnect and one of the static contacts will be closed. After the coil is energized, the moving contact will move, makes the original broken change to closed state, and original closed state changed to disconnected state, to achieve the purpose of conversion.

Normally Open Type (H):

The contact is disconnect state when coil is not energized, and contact will be closed when coil is energized.

Normally Closed Type (D):

The contact is closed state when coil is not energized, and contact will be disconnected when coil is energized.

Contact Parameters

Operation Coil

4. Product Parameter

5. Guarantee

To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.

6. Sample Policy

To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.

7. Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

8. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
