Payment & Shipping Terms:
|Cover:||Black Plastic Cover||Wire:||Copper|
|Pins Material:||Copper||Contact:||Copper Contact|
high amperage relay,
ultra small relay

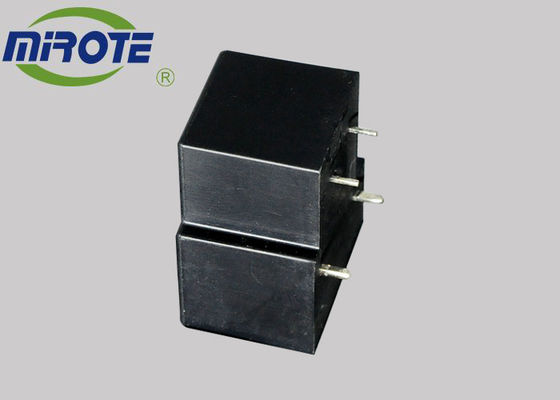

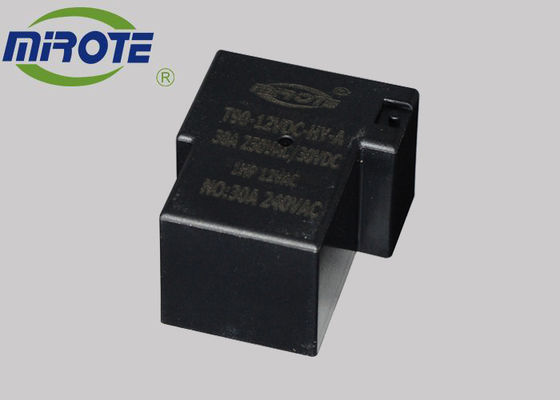

Mini Power Spdt 24v Ac 40 Amp Relay 4 Pin Pcb Type Electromagnetic
EXPORT LOGO & DOMESTIC LOGO
When you opened this website which means we are very lucky get your attention , your visiting is very important for us . We are the most abundant manufacturer of relay and flasher products in China , competitive price .We sincerely hope to cooperate with you, an important customer , to create higher value and future together .
1.How to choose a good relay ,
its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.
Zhejiang Huiyou is a factory in China for more than ten years. Its products are sold to more than 30 countries and regions all over the world. It has a strong technical reserve, excellent automation production equipment and more than 100,000 products are shipped every day. Strict quality management team, sincerely looking forward to partners from around the world.
As the 40A PCS relay, it’s with large power, moderate volume and high temperature resistant.The PCB-welded pins are waterproof, moisture-proof and has long service life.
|Operate time||15 ms max|
|Release Time||10 ms max|
|Insulation Resistance||1000 MΩ min , at 500v|
|Power Consumption||2.0 VA|
|Vibration Resistance||10Hz -55Hz Double Amplitude 1.5 mm|
|Solderability||260℃ for 5 seconds|
|Operating Temp Range||-55℃ to 125℃|
|1)Power PCB Relay with AC Coils|
|2) 40 Amp 240 VAC Resistive UL Rating|
|3)2 HP 250 VAC Rating|
|4)UL Class F Insulation Standard|
|5)Meets UL 508 and UL 873 Spacing|
5.Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed
6.Twenty exhibitions worldwide each year
7.More than 100 products
Nowadays, package is important, we have various packing methods for your selection.
1)25pc per paper box , 500pcs in a master carton
You can also customize your package, as long as the quantity is considerable.
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .
10. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Contact Person: Tracy Fong
