Product Details:
Payment & Shipping Terms:
|
Cover: | Black Color | Wire: | Copper |
---|---|---|---|
Pins: | 4 Pins (copper / Iron ) | Contact: | Copper / AgO2 |
Braided: | With /without Braided Wire | Waterproof: | Sealed |
Backrest: | With Metal Sheet | ||
High Light: | car electrical relay,car power relay |

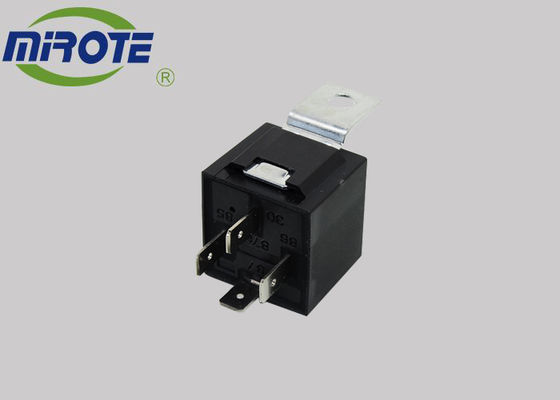

Sealed 4pins 12v 30a 40a 24 Volt Automotive Relay With Metal Sheet Black Cover
EXPORT LOGO & DOMESTIC LOGO
When you opened this website which means we are very lucky get your attention , your visiting is very important for us . We are the most abundant manufacturer of relay and flasher products in China , competitive price .We sincerely hope to cooperate with you, an important customer , to create higher value and future together .
1How to choose a good relay ,
its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.
Zhejiang Huiyou is a factory in China for more than ten years. Its products are sold to more than 30 countries and regions all over the world. It has a strong technical reserve, excellent automation production equipment and more than 100,000 products are shipped every day. Strict quality management team, sincerely looking forward to partners from around the world.
2.Brief Introduction
DC 12V 40A 4 pins relay. SPST type.Metal mounting tab handle that can be removedUsed when a device draws heavy amperage such as car alarms, remote starts, HID headlights, pop doors, trunk releases strobe lights, fog lights, stereos, fans, air horns, etc.
3.Parameter
Contact Form | 1H(1A),1Z(1C) |
Contact Resistance | 100mΩ(1A 6VDC) |
Contact Material | Silver Alloy |
Contact Load | 1H:40A 14VDC 1Z:30A/14VDC |
Max switch Current | 40A |
Max switch Power | 560w |
Max switch Voltage | 60VDC |
Mechanical Life | 1×107 times |
Electrical Life | 5×104 times |
Performance Parameter | |
lsulation Resistance | 100mΩ ,500VDC |
Operate Time | Max:15 ms |
Release Time | Max:10 ms |
Coil Temperature | Max:60°C |
Temperature Ran | ﹣40°C~﹢85°C |
Shock | Double shock:1.5mm 10~55Hz |
Humidity | 35%~85%RH |
Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed
Twenty exhibitions worldwide each year
More than 100 products
4.Main export market
Mid east , North America , Southeast Asia , South America , Africa ...
5. Product packaging
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
6.Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .
7, Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Shipping way : By air , we send to your forwarder warehouse .
By express , door to door deliverly .
By ship , send to your agent or forwarder warehouse .
