Product Details:
Payment & Shipping Terms:
|
| Cover: | Transparent | Wire: | Copper |
|---|---|---|---|
| Pins: | 5 Copper Pins | Contact: | Silver Tin Oxide |
| Braided: | No Braided Wire | Waterproof: | Sealed |
| Led Light: | With Led Light | ||
| High Light: | heavy duty automotive relay,car power relay |
||
Generic 80 Amp Automotive Relay With Led Light , 5 Point 24 Volt Automotive Relay
EXPORT LOGO & DOMESTIC LOGO
When you opened this website which means we are very lucky get your attention , your visiting is very important for us . We are the most abundant manufacturer of relay and flasher products in China , competitive price .We sincerely hope to cooperate with you, an important customer , to create higher value and future together .
1.How to choose a good relay ,
its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.
2.Zhejiang Huiyou is a factory in China for more than ten years. Its products are sold to more than 30 countries and regions all over the world. It has a strong technical reserve, excellent automation production equipment and more than 100,000 products are shipped every day. Strict quality management team, sincerely looking forward to partners from around the world.
3. Relay circult
4. Parameter
| Nominal Volage(UN) | 12V | Nominal Current | 80A/14V |
| Operating Volage(Uop) | 9-15V | Max.Cont.Current | 80A |
| Contact Resistance | ≤30mΩ | Max.Switching Current ON | 100A |
| Pull ln Volage | ≤7,8V | Max.Switching Current OFF | 80A |
| Pull-Off Volage | 1≤V≤5 | lnsulati0n Resistance | 100 MΩ min |
| Coil Power Consump. | 1,6W | Dielectnic Strength Between Contacts | 50Hz 500V |
| Coil Resistance(Ω±%10) | 90Ω | ||
| Operatin Life (Electrical) | 105 | Terminals Strength | 100N |
| Mechanical Characteristics | |||
| Contact Material | AgSnO2 | Terminals | CuZn 9.5×0.8mm CuZn 6.3×0.8mm |
| Contact Operate Time | ≤7ms | ||
| Contact Release Time | ≤5ms | Fixed Contact | AgSnO2 |
| Operation Temperature | ﹣30..+85°C | Moving Contact | AgSnO2 |
| Relative Humidity | %85(at40°C) | Coil | Oxygen Free Copper |
| Shock Resistance | 147m/s2 11ms | Base Plate | Nylon PA6,6 |
| Operation Life (Mechanical) | 107 | Cap | Nylon PA6,6 |
| Mass | 48g | ||
5.Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed
6.Twenty exhibitions worldwide each year
7.More than 100 products
8.Application
Mainly used for headlamp and air-conditioner of universal cars .

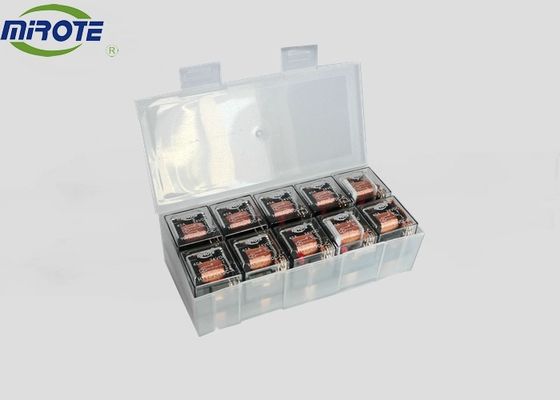

9. Product packaging
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
10.Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
11.Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
12.Terms of delivery
FOB, CFR, CIF,
13. Delivery time
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
