4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay

China Zhejiang Huiyou Auto Parts Co., Ltd. certification
China Zhejiang Huiyou Auto Parts Co., Ltd. certification
Happy purchase experience for 12v 40 amp relays , good quality , good price and good service .will have next cooperation soon

—— Max Tavarez

We installed the auto relay and flasher on cars, looks so cool, hope to get more Interesting items for our theme events in the next year. Keep in touch!

—— Omar Abualhayja

With good quality and cheap price on relay flash product, will have long time cooperation with huiyou company.

—— Ahmed Lama

Product is good and deliver so fast, will keep the cooperation for long time. Hope Huiyou company business getting better and better. And the relay product quality is very good, love it.

—— Amir Abbas Kiani

I'm Online Chat Now

4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay

4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay
4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay

Large Image :  4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay

Product Details:
Place of Origin: CHINA
Brand Name: MIROTE
Model Number: HY409-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: 10pcs/box 500pcs/ctn
Delivery Time: 15-30days
Payment Terms: L/C, T/T, D/P
Supply Ability: 200000pcs/week
Detailed Product Description
Cover: Transparent Wire: Copper
Pins: 4 Copper Pins Contact: Silver Tin Oxide
Braided: No Braided Wire Waterproof: Sealed
Led Light: With Led Light
High Light:

car electrical relay

,

heavy duty automotive relay

4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay

1.How to choose a good relay
Its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.

2. Brief Introduction
Single Pole Double Throw. This means that the relay can supply a device with either Power Input Wire A or Power Input Wire B - So, A+B or A+C.
This relay is the standard 5 terminal Automotive style relay that is used in all sorts of places (automotive, machinery, etc). This relay is 12VDC 30 Amp capacity


4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 0

4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 14 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 24 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 34 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 4

3. Parameter

Contact Form1H(1A),1Z(1C)
Contact Resistance100mΩ(1A 6VDC)
Contact MaterialSilver Alloy
Contact Load1H:40A 14VDC 1Z:30A/14VDC
Max switch Current40A
Max switch Power560w
Max switch Voltage60VDC
Mechanical Life1×107 times
Electrical Life5×104 times

Performance Parameter
lsulation Resistance100mΩ ,500VDC
Operate TimeMax:15 ms
Release TimeMax:10 ms
Coil TemperatureMax:60°C
Temperature Ran﹣40°C~﹢85°C
ShockDouble shock:1.5mm 10~55Hz
Humidity35%~85%RH


4. Excellent production equipment
4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 5

5. Main export market
Mid east , North America , Southeast Asia , South America , Africa ...

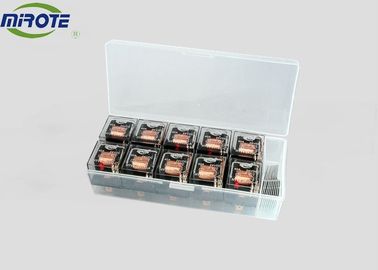

6. Package
Nowadays, package is important, we have various packing methods for your selection.
4 Pin 12V 40a 2 Contacts With Led Light Transparent Spdt Automotive Relay 6
You can also customize your package, as long as the quantity is considerable.

7. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .

8. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Shipping way : By air , we send to your forwarder warehouse .
                       By express , door to door deliverly  .
                       By ship , send to your agent or forwarder warehouse .
