Product Details:
Payment & Shipping Terms:
|
| Contact Form: | 1A 1C | Wire: | Copper |
|---|---|---|---|
| Pins: | 2.8mm Plug In Terminal | Contact: | AgSnO2 |
| Waterproof: | Sealed | Car Series: | HYUNDAI, KIA |
| OE: | 12135175 12177236 | ||
| High Light: | gm fuel pump relay,adjustable timer relay |
||

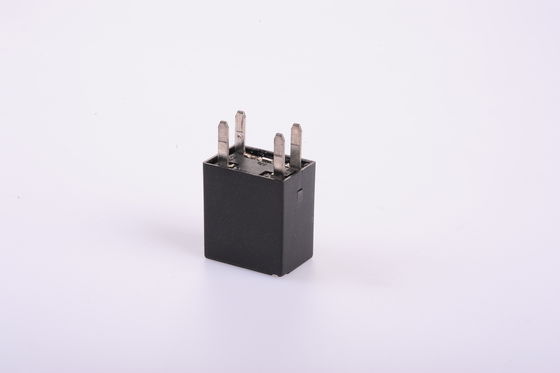

Mini Automotive Relay 12088592 12V Relay for Buick, Isuzu, Chevrolet
1.Product Details.
Feature: With 1A , 1C two contact forms
Application: Light/ Headlight / Fog Light Control
Horn Control and A/C compressor Control
2.Parameter
| Characteristics | |
| Contact Form | 1A 1C |
| Contact material | Silver Alloy |
| Current type | NO:30A 14VDC NC:20A 14VDC |
| Max Switching Voltage | 30VDC |
| Max Switching Current | 30A |
| Max Switching Power | 420W |
| Contact Resistance Voltage Drop | <100Ω |
| Electric life | 1000000ops |
| Mechanical life | 10000000 ops |
| Ambient temperature | -40°C~+125°C |
| Operate time/Release time | 10msec.Max / 10msec.Max |
| Functional Humidity | 10 ~ 55Hz |
| Construction | Waterproof or Dust cover |
| Weight | 19.6g |
3.Excellent production equipment
4. Recommend Products
5.Exhibitions worldwide
6. Product packaging
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
You can also customize your package, as long as the quantity is considerable.
7.Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
8.Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
9. Delivery time
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
