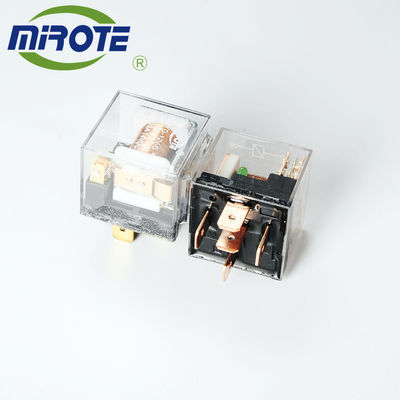

Peugeot Horn Automotive Power Relay

Peugeot Horn Automotive Power Relay
Peugeot Horn Automotive Power Relay
video play

Large Image :  Peugeot Horn Automotive Power Relay

Product Details:
Place of Origin: CHINA
Brand Name: MIROTE
Model Number: HY409-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiation
Packaging Details: 10pcs/box 500pcs/ctn
Delivery Time: 15-30days
Payment Terms: L/C, T/T, D/P
Supply Ability: 200000pcs/week
Detailed Product Description
Cover: Transparent Wire: Copper
Pins: 5 Copper Pins Contact: Silver Tin Oxide
Braided: No Braided Wire Waterproof: Sealed
Led Light: With Led Light
High Light:

Peugeot Horn Automotive Power Relay


40A Peugeot Horn Relay

Transparent relay 30A 40A suitable for Peugeot horn relay



Peugeot Horn Automotive Power Relay 0   Peugeot Horn Automotive Power Relay 1


When you opened this website which means we are very lucky get your attention , your visiting is very important for us . We are the most abundant manufacturer of relay and flasher products in China , competitive price .We sincerely hope to cooperate with you, an important customer , to create higher value and future together .

1.How to choose a good relay ,

its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.


2.Zhejiang Huiyou is a factory in China for more than ten years. Its products are sold to more than 30 countries and regions all over the world. It has a strong technical reserve, excellent automation production equipment and more than 100,000 products are shipped every day. Strict quality management team, sincerely looking forward to partners from around the world.

Peugeot Horn Automotive Power Relay 2Peugeot Horn Automotive Power Relay 3Peugeot Horn Automotive Power Relay 4Peugeot Horn Automotive Power Relay 5

Peugeot Horn Automotive Power Relay 6

3.Brief Introduction
Single Pole Double Throw. This means that the relay can supply a device with either Power Input Wire A or Power Input Wire B - So, A+B or A+C.
This relay is the standard 5 terminal Automotive style relay that is used in all sorts of places (automotive, machinery, etc). This relay is 12VDC 30 Amp capacity


Peugeot Horn Automotive Power Relay 7


Peugeot Horn Automotive Power Relay 8Peugeot Horn Automotive Power Relay 9Peugeot Horn Automotive Power Relay 10Peugeot Horn Automotive Power Relay 11Peugeot Horn Automotive Power Relay 12


Contact Form 1H(1A),1Z(1C)
Contact Resistance 100mΩ(1A 6VDC)
Contact Material Silver Alloy
Contact Load 1H:40A 14VDC 1Z:30A/14VDC
Max switch Current 40A
Max switch Power 560w
Max switch Voltage 60VDC
Mechanical Life 1×107 times
Electrical Life 5×104 times
Performance Parameter
lsulation Resistance 100mΩ ,500VDC
Operate Time Max:15 ms
Release Time Max:10 ms
Coil Temperature Max:60°C
Temperature Ran ﹣40°C~﹢85°C
Shock Double shock:1.5mm 10~55Hz
Humidity 35%~85%RH

5.Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed

Peugeot Horn Automotive Power Relay 13

6.Twenty exhibitions worldwide each year

Peugeot Horn Automotive Power Relay 14

7.More than 100 products

Peugeot Horn Automotive Power Relay 15


8.Main export market

Mid east , North America , Southeast Asia , South America , Africa ...


9. Package

Nowadays, package is important, we have various packing methods for your selection.

Peugeot Horn Automotive Power Relay 16

You can also customize your package, as long as the quantity is considerable.



To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .


11, Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Shipping way : By air , we send to your forwarder warehouse .

                       By express , door to door deliverly  .

                       By ship , send to your agent or forwarder warehouse .
