| Type: | Power Relay | Rated Voltage: | 24VDC |
|---|---|---|---|
| Coil Voltage: | DC6-220V | Operate Time: | 50ms |
| Coil Pull-in Voltage: | Under 70% | Temperature: | -30℃~ +80 ℃ |
| Weight: | 240g | Power: | DC3.6W AC10.5VA |
| High Light: | jqx-59f automotive power relay,100a automotive power relay,250vac car power relay |
||

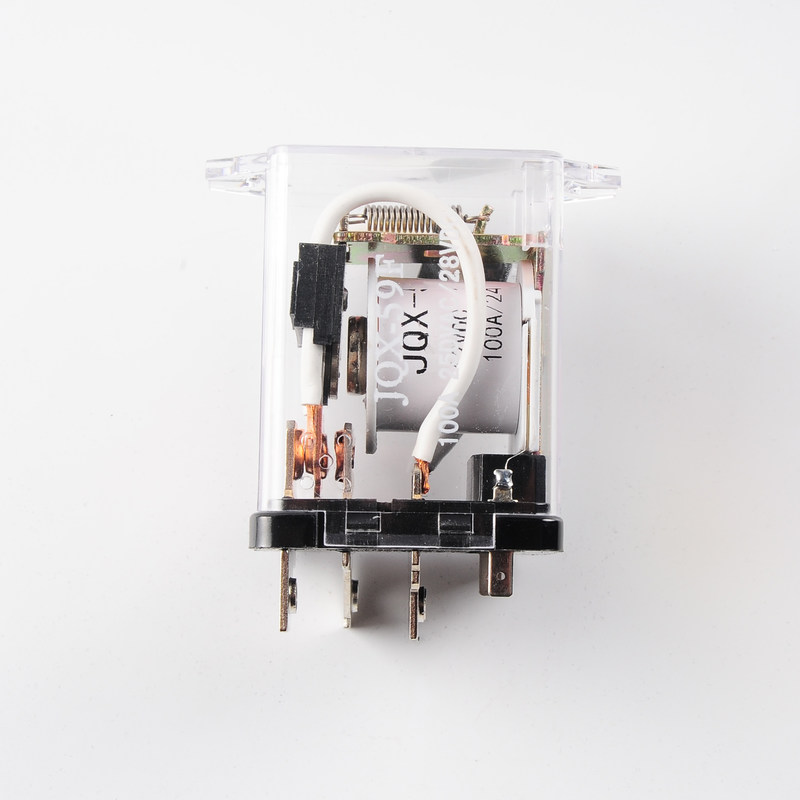

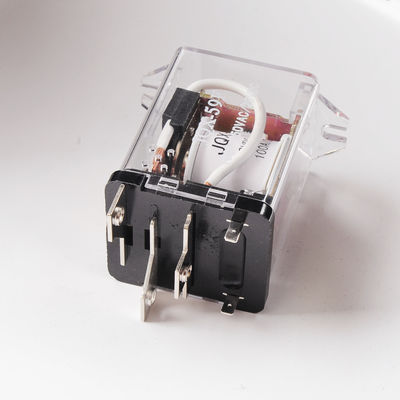

1.JQX-59F 100A 250VAC 28VDC coil Power Relay
2. Specification
Technical Specification
| Insulation Resistance | > 1000mΩ (500VDC) |
| Dielectric strength | Between coil and contacts > 2500VAC 1min |
| Between open contacts > 1200 VAC 1min | |
| Operate/ Release time | < 40ms/ 25ms |
| Terminal Type | Screw |
Contact Specification
| Contact Form | 1Z, 1H, 1D | 2Z , 2H, 2D |
| Contact Resistance | < 100mΩ (1A 6VDC) | |
| Contact Material | AgCdO, AgSnO2 | |
| Contact Capacity | 100A 250VAC /30VDC | |
Coil Rate
|
Nominal Voltage VDC |
Operate Voltage VDC |
Release Voltage VDC |
Coil Resistance Ω+ 10% |
Nominal Voltage VAC |
Operate Voltage VAC |
Release Voltage VAC |
Coil Resistance Ω+ 10% |
| 6 | 4.8 | 0.6 | 18 | 6 | 4.8 | 1.8 | 9 |
| 12 | 9.6 | 1.2 | 70 | 12 | 9.6 | 3.6 | 36 |
| 24 | 19.2 | 2.4 | 290 | 24 | 19.2 | 7.2 | 144 |
| 48 | 38.4 | 4.8 | 1150 | 48 | 38.4 | 14.4 | 576 |
| 60 | 48 | 6.0 | 1800 | 110 | 88 | 36.0 | 3500 |
| 110 | 88 | 11.0 | 6050 | 220/240 | 176 | 72.0 | 12000/14000 |
Changeover Type (Z):
In the middle there is a moving contact, when the coil is not energized, the moving contacts will be disconnect and one of the static contacts will be closed. After the coil is energized, the moving contact will move, makes the original broken change to closed state, and original closed state changed to disconnected state, to achieve the purpose of conversion.
Normally Open Type (H):
The contact is disconnect state when coil is not energized, and contact will be closed when coil is energized.
Normally Closed Type (D):
The contact is closed state when coil is not energized, and contact will be disconnected when coil is energized.
3. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
4. Sample Policy
To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.
5. Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
6. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
