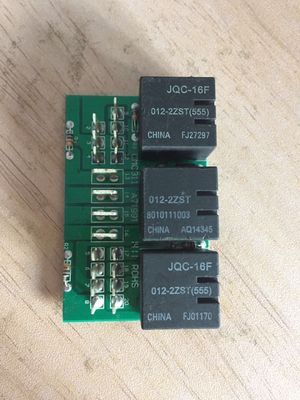

PW892520 Electronic Fuel Pump Relay For Proton Car

The lighting relay is a single wire operation, but there is space for a fourth relay so that another twin relay system can be implemented. Alternatively the four relays could be worked independently (requiring four control wires).

• One wire operates twin horns (High for horn 1, Low for Horn 2)
• One wire operates lights.
• Relay continuous current handling: 10 amps at 24 volts.
• Versions available with 3 and 4 relays [4th relay usually used for reversing lights].
• Versions available for 12 and 24 volt systems.
• The 24v version can be used with 12v horns/lighting by cutting a single track
• Wiring diagrams for mixed voltages and the 4 relay version are in our knowledgebase
