| Theory: | Electromagnetic Relay | Rated Voltage: | 12VDC |
|---|---|---|---|
| Contact Resistance: | < 100mΩ (1A 6VDC) | Weight: | 30g |
| Contact Rated: | 30A 240VAC/28VDC | Contact Form: | 1Z 1H 1D |
| Contact Material: | Silver Alloy | Action Type: | SPDT |
| High Light: | mirote electromagnetic power relay,12vdc electromagnetic power relay,spdt electromagnetic power relay |
||

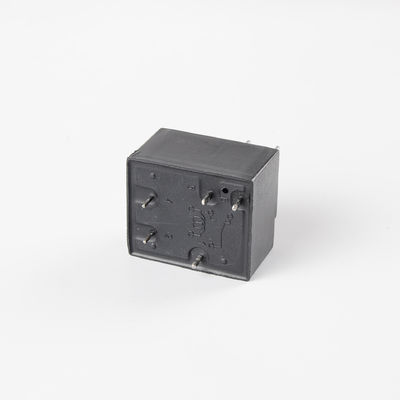

1.JQX-21F(T93) Coil Control electrical Voltage 12VDC electromagnetic relay
2.Parameter
Product Specification
| Contact | Contact Form | 1Z |
| Contact Load |
NO: 30A 250VAC/30VDC NC: 20A 250VAC/30VDC NO: 40A 250VAC/30VDC NC: 30A 250VAC/30VDC |
|
| Mechanical/Electrical Life | > 105 times / 107 times | |
| Contact Resistance | <100mΩ (1A 6VDC) | |
| Contact Material | AgSno2 | |
| Performance | Insulation Resistance | ≥1000MΩ(500VDC) |
| Dielectric Strength | Between same pole Contacts > 1500VAC/1min | |
| Between Coil and Contact> 2500VAC/1min | ||
| Pull-in/Release Time | < 15ms/ 10ms | |
| Coil | Rated Coil Power | 0.9W |
DC Coil Specification
| Rated Voltage | Pick-up Voltage | Drop-out Voltage | Coil Resistance |
| VDC | VDC | VDC | Ω+ 10% |
| 5 | 3.75 | 0.5 | 30 |
| 6 | 4.5 | 0.6 | 45 |
| 9 | 6.75 | 0.9 | 100 |
| 12 | 9 | 1.2 | 160 |
| 15 | 11.25 | 1.5 | 260 |
| 18 | 13.5 | 1.8 | 385 |
| 24 | 18 | 2.4 | 660 |
| 48 | 36 | 4.8 | 2560 |
| 110 | 82.5 | 1113450 |
Contact Ratings
| Contact Arrangement | 1Form 1 (SPST-NO) | 1 Form C(SPDT) |
| Max. Switching Power | 7200VA/ 840W | 4800VA/560W |
| Max. Switching Voltage | 240VAC/28VDC | 240VAC/28VDC |
| Max. Switching Current | 30A | 20A |
| Contact Resistance | 50m Ω | 50m Ω |
| Initial Contact Resistance | 100m Ω | 100m Ω |
| Rating Load | 30A/240VAC 28VDC | 20A/240VAC 28VDC |
| Contact Material | Ag-CdO | |
Environmental Condition
| Temperature Range | -55~+85℃ |
| Relative Humidity | Up to 98% at + 40℃ |
| Atmospheric Pressure | 86~ 106Kpa |
| Vibration | 10~55Hz Dual Amplitude 1.65mm |
| Shock | 98 m/s2 |
| Operating Position | Optional |
