Product Details:
Payment & Shipping Terms:
|
| Cover: | Transparent | Wire: | Copper |
|---|---|---|---|
| Pins: | 5 Copper Pins | Contact: | Silver Tin Oxide |
| Braided: | No Braided Wire | Waterproof: | Sealed |
| Led Light: | With Led Light | ||
| High Light: | car electrical relay,heavy duty automotive relay |
||

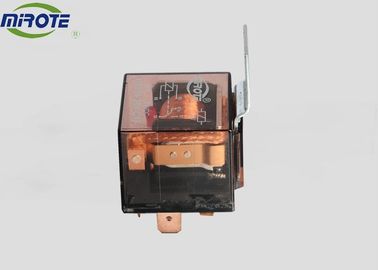

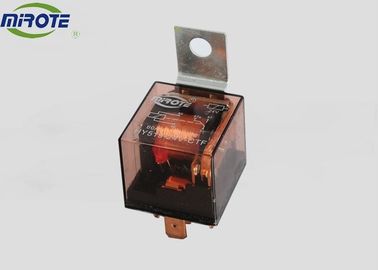

Transparent Coffee 80 Amp Automotive Relay , 5 Blades 12 Volt Waterproof Universal Auto Relay
EXPORT LOGO & DOMESTIC LOGO
1. How to choose a good relay
Its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.
2. Material Analyze
3. Relay circult
4. Parameter
| Feature |
high-capacity, 60A switching capability. 1 form A, 1 form B, 1 form C, 2 form A contact arrangement |
| Application | Auto control device |
| Size | 28.0*28.0*25.0mm |
| Ambient temperature | -40°C~+125°C |
| Contact Form | 1a,1b,1c |
| Contact Capacity |
1a:80A 14VDC 1b:60A 14VDC 1c:80A/60A 14VDC |
| Coil Voltage | 12VDC,24VDC,48VDC |
| Coil Power | 1.8W |
| Contact Resistance | ≤50mΩ |
| Initial insulation resistance | ≥1,00MΩ |
| Life |
Electrical Life 100,000ops Mechanical Life 1,000,000ops |
| Dielectric strength |
Between off-contact 500VAC Between Coil contact 500VAC |
|
Installing form
|
Tri-clamp connection, socket mount |
| Environment Temperature | -40°C~+125°C |
| Weight | 30g |
5. Product packaging
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
6. Delivery time
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
