Product Details:
Payment & Shipping Terms:
|
| Cover: | Transparent | Wire: | Copper |
|---|---|---|---|
| Pins: | 5 Copper Pins | Contact: | Silver Tin Oxide |
| Braided: | No Braided Wire | Waterproof: | Sealed |
| Led Light: | With Led Light | ||
| High Light: | car electrical relay,heavy duty automotive relay |
||

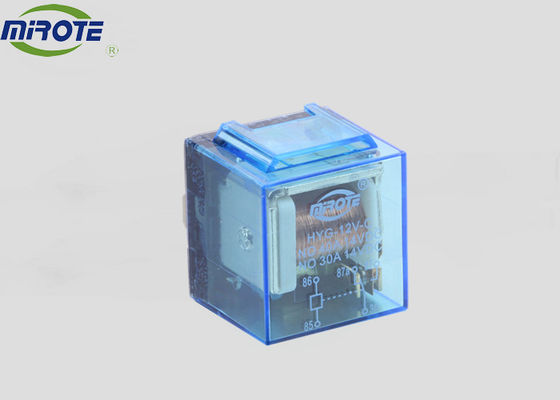

Transparent Blue 80 Amp Automotive Relay , 5 Pin Universal 12 Volt Relay With Led Light
EXPORT LOGO & DOMESTIC LOGO
When you opened this website which means we are very lucky get your attention , your visiting is very important for us . We are the most abundant manufacturer of relay and flasher products in China , competitive price .We sincerely hope to cooperate with you, an important customer , to create higher value and future together .
1. Product Detail
2.Relay circult
3. use
starter kills, domelight supervision, trunk release, polarity change,power door lock/actuator control, change a low current output to high current,add ignition/accessory outputs, control motors/other electronics, It is Also suitable for automobile used for control, alarms, horn, headlight and more....
4. Parameter
| Nominal Volage(UN) | 12V | Nominal Current | 80A/14V |
| Operating Volage(Uop) | 9-15V | Max.Cont.Current | 80A |
| Contact Resistance | ≤30mΩ | Max.Switching Current ON | 100A |
| Pull ln Volage | ≤7,8V | Max.Switching Current OFF | 80A |
| Pull-Off Volage | 1≤V≤5 | lnsulati0n Resistance | 100 MΩ min |
| Coil Power Consump. | 1,6W | Dielectnic Strength Between Contacts | 50Hz 500V |
| Coil Resistance(Ω±%10) | 90Ω | ||
| Operatin Life (Electrical) | 105 | Terminals Strength | 100N |
| Mechanical Characteristics | |||
| Contact Material | AgSnO2 | Terminals | CuZn 9.5×0.8mm CuZn 6.3×0.8mm |
| Contact Operate Time | ≤7ms | ||
| Contact Release Time | ≤5ms | Fixed Contact | AgSnO2 |
| Operation Temperature | ﹣30..+85°C | Moving Contact | AgSnO2 |
| Relative Humidity | %85(at40°C) | Coil | Oxygen Free Copper |
| Shock Resistance | 147m/s2 11ms | Base Plate | Nylon PA6,6 |
| Operation Life (Mechanical) | 107 | Cap | Nylon PA6,6 |
| Mass | 48g | ||
5. Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed
6. Twenty exhibitions worldwide each year
7. Feature
1) High 80A coil capacity, handle those high current applications with ease 5 Pins, welding connected.
2) Special designed for PCB board.
3) Heavy-duty impact molded, Vibration resistant & Shock resistant.
4) For 12V Automotive car van vehicle bus truck
5) Professional installer recommended!
8. Package
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
