Product Details:
Payment & Shipping Terms:
|
| Cover: | Transparent | Wire: | Copper |
|---|---|---|---|
| Pins: | 5 Copper Pins | Contact: | Silver Tin Oxide |
| Braided: | No Braided Wire | Waterproof: | Sealed |
| Led Light: | With Led Light | ||
| Highlight: | heavy duty automotive relay,car power relay |
||

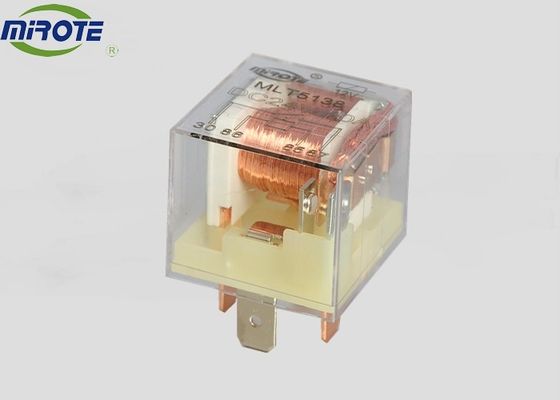

Transparent 4 Teminals 12v 40 Amp Waterproof Relay White Baseboard Included
1. Product Detail
2. Circuit
3.Parameter
| Contact Form | 1H(1A),1Z(1C) |
| Contact Resistance | 100mΩ(1A 6VDC) |
| Contact Material | Silver Alloy |
| Contact Load | 1H:40A 14VDC 1Z:30A/14VDC |
| Max switch Current | 40A |
| Max switch Power | 560w |
| Max switch Voltage | 60VDC |
| Mechanical Life | 1×107 times |
| Electrical Life | 5×104 times |
| Performance Parameter | |
| lsulation Resistance | 100mΩ ,500VDC |
| Operate Time | Max:15 ms |
| Release Time | Max:10 ms |
| Coil Temperature | Max:60°C |
| Temperature Ran | ﹣40°C~﹢85°C |
| Shock | Double shock:1.5mm 10~55Hz |
| Humidity | 35%~85%RH |
4. Other related items
5.Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .
6. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Shipping way : By air , we send to your forwarder warehouse .
By express , door to door deliverly .
By ship , send to your agent or forwarder warehouse .
