Product Details:
Payment & Shipping Terms:
|
Cover: | Transparent Cover | Wire: | Copper |
---|---|---|---|
Pins: | 5 Copper | Contact: | 2 Copper Cg |
Braided: | With Braided Wire | Waterproof: | Sealed |
OE: | 0K9A0-67-740 K901-18-811 | ||
Highlight: | heavy duty automotive relay,car power relay |

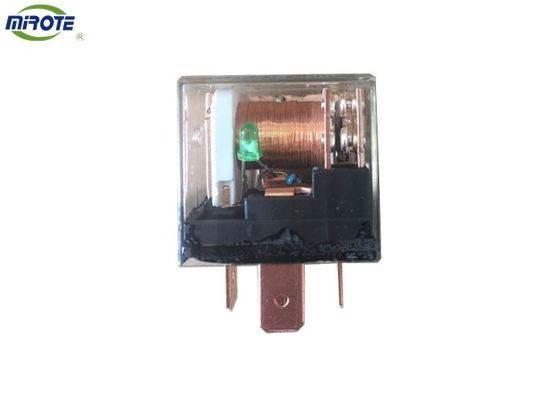

High Power JD1914 40 Amp 5 Pin Relay Led Light Double Contact Point Waterproof Relay
1. Product Description
1.1 High Power - 40A switching capability.
1.2 Application: Window Control, Headlight Control, Air- Conditioner, Using small current to control big amp.
1.3 Contact Form: 1A 1B 1C
2. Relay circult and Parameter
Feature |
high-capacity, 60A switching capability. 1 form A, 1 form B, 1 form C, 2 form A contact arrangement |
Application | Auto control device |
Size | 28.0*28.0*25.0mm |
Ambient temperature | -40°C~+125°C |
Contact Form | 1a,1b,1c |
Contact Capacity |
1a:80A 14VDC 1b:60A 14VDC 1c:80A/60A 14VDC |
Coil Voltage | 12VDC,24VDC,48VDC |
Coil Power | 1.8W |
Contact Resistance | ≤50mΩ |
Initial insulation resistance | ≥1,00MΩ |
Life |
Electrical Life 100,000ops Mechanical Life 1,000,000ops |
Dielectric strength |
Between off-contact 500VAC Between Coil contact 500VAC |
Installing form |
Tri-clamp connection, socket mount |
Environment Temperature | -40°C~+125°C |
Weight | 30g |
3.Twenty exhibitions worldwide each year
4. Product packaging
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
5.Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
6.Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
7. Delivery time
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
