|Pins:||4 Copper Pins||Contact:||Silver Tin Oxide|
|Braided:||No Braided Wire||Waterproof:||Sealed|
|Led Light:||With Led Light|
heavy duty automotive relay,
car power relay

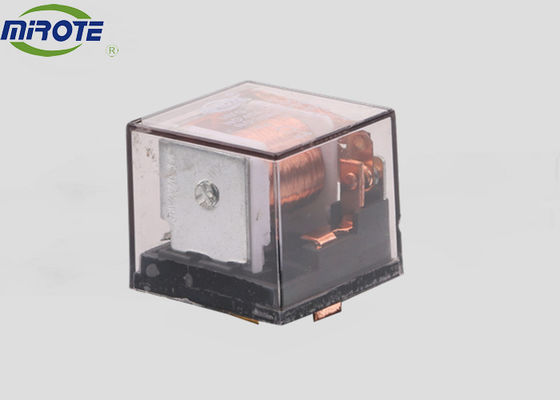

Transparent Cover 80 Amp Automotive Relay , 24 Volt Relay 4 Pin With Metal Sheet And Led Light
EXPORT LOGO & DOMESTIC LOGO
1.How to choose a good relay ,
its quality mainly depends on the material and technology, choose a silver contact point makes the working life much longer, and machine core use pure copper wire, 30 and 87 pins use copper material too, then the relay can be used for 5-8 years. If add one more braided wire ,the power will be larger, so as the working life . If need matching with the OEMs , you can choose a larger particles of silver contact , using longer, but the price will be higher too .Our company has been established for over ten years. More than 100 kinds of products in our factory production , almost contain all car relays and flasher, welcome to consult.
Zhejiang Huiyou is a factory in China for more than ten years. Its products are sold to more than 30 countries and regions all over the world. It has a strong technical reserve, excellent automation production equipment and more than 100,000 products are shipped every day. Strict quality management team, sincerely looking forward to partners from around the world.
This product is a brand new 5-pin relay, which can be used in tarter killing, dome light supervision, trunk releasing, and polarity changing, and so on.
With 80A coil capacity,it is able to handle high current applications with ease and to change a low current to high current. It is suitable for any 12V applications.
|Nominal Volage(UN)||12V||Nominal Current||80A/14V|
|Contact Resistance||≤30mΩ||Max.Switching Current ON||100A|
|Pull ln Volage||≤7,8V||Max.Switching Current OFF||80A|
|Pull-Off Volage||1≤V≤5||lnsulati0n Resistance||100 MΩ min|
|Coil Power Consump.||1,6W||Dielectnic Strength Between Contacts||50Hz 500V|
|Operatin Life (Electrical)||105||Terminals Strength||100N|
|Contact Material||AgSnO2||Terminals||CuZn 9.5×0.8mm CuZn 6.3×0.8mm|
|Contact Operate Time||≤7ms|
|Contact Release Time||≤5ms||Fixed Contact||AgSnO2|
|Operation Temperature||﹣30..+85°C||Moving Contact||AgSnO2|
|Relative Humidity||%85(at40°C)||Coil||Oxygen Free Copper|
|Shock Resistance||147m/s2 11ms||Base Plate||Nylon PA6,6|
|Operation Life (Mechanical)||107||Cap||Nylon PA6,6|
4.Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed
5.Twenty exhibitions worldwide each year
6.More than 100 products
Air Conditioning, Fridge, Washing Machine, etc Household Appliance
We have realized fully automated production so that short production time available. Products are with stable quality, can be waterproof and open frame type. High-quality silver contact points make the contact resistance reached the international standard.
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .
11, Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
